YAMAHA Motor-driven actuators YLE Series
Beschreibung
The extensive line up of products enables a wide range of combinations.
The functionality equivalent to that of a servomotor is now available at low costs.
The product line up of total 6 types with 69 models and 180 variations are now newly available for YAMAHA to propose a variety of applications to you. They include the slider type, though compact, that can transport up to 65 kg, rod type with up to 500 mm of stroke, compact and highly rigid slide table type, compact rotary type used for rotational axes, gripper type with a wide selection of gripping power, and compact and lightweight miniature type.

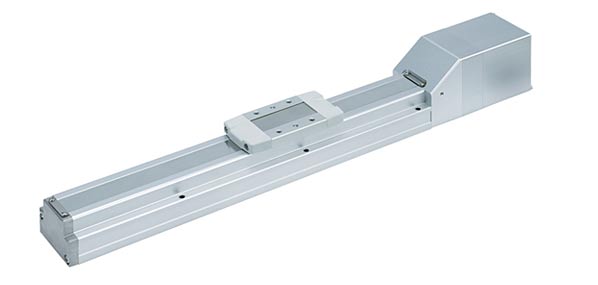

Slider type YLEF
11 types
YLEFS
Ball Screw Drive
YLEFB
Belt Drive
Rotary table type YLER
6 types
Rod type YLEY
16 types
YLEPY
Miniature rod
YLEPS
Miniature slide tables
Slide table type YLES
12 types
YLES
Low profile type
YLESH
High rigidity type
Electrical gripper type YLEH
20 types
YLEHZ
Two claws
YLEHZJ
Two claws dust cover
YLEHF
Two claws long stroke
YLEHS
3 claws
Technische Daten
| Type | Slide Type [Ball Screw Drive] | Slide Type [Belt Drive] | |||||
| Model | YLEFS16 | YLEFS25 | YLEFS32 | YLEFS40 | YLEFFB16 | YLEFB25 | YLEFB32 |
| Stroke (mm) | 50-500 | 50-800 | 50-1000 | 150-1200 | 300, 500, 600, 700, 800, 900, 1000 | 300, 500, 600, 700, 800, 900, 1000, 1200, 1500, 1800, 2000 | 300, 500, 600, 700, 800, 900, 1000, 1200, 1500, 1800, 2000 |
| Type | Rod Type | Guide Fitted Rod Type | ||||||
| Model | YLEY16 | YLEY25 | YLEY32 | YLEY40 | YLEYG16 | YLEYG25 | YLEYG32 | YLEYG40 |
| Stroke (mm) | 30, 50, 100, 150, 200, 250, 300 | 30, 50, 100, 150, 200, 250, 300, 350, 400 | 30, 50, 100, 150, 200, 250, 300, 350, 400, 450, 500 | 30, 50, 100, 150, 200, 250, 300, 350, 400, 450, 500 | 30, 50, 100, 150, 200 | 30, 50, 100, 150, 200, 250, 300 | 30, 50, 100, 150, 200, 250, 300 | 30, 50, 100, 150, 200, 250, 300 |
| Type | Slide Table Type [Type Thin Type] | Slide Table Type [High Rigidity Type] | ||||
| Model | YLES8 | YLES16 | YLES25 | YLESH8 | YLESH16 | YLESH25 |
| Stroke (mm) | 30, 50, 75 | 30, 50, 75, 100 | 30, 50, 75, 100, 125, 150 | 50, 75 | 50, 100 | 50, 100, 150 |
| Type | Miniature Load Type | Miniature Slide Table Type | ||
| Model | YLEPY6 | YLEPY10 | YLEPS6 | YLEPS10 |
| Stroke (mm) | 20, 50, 75 | 25, 50 | ||
| Type | Rotary Table Type [Standard Spec. (Finite Rotary)] | Rotary Table Type [Continuous Rotary Spec.] | ||||
| Model | YLER10 | YLER30 | YLER50 | YLER10 | YLER30 | YLER50 |
| Movement Angle（°） | 310 Outer Stopper: 180/90 | 320 Outer Stopper: 180/90 | 360 | |||
| Model | YLEHZ10 | YLEZH16 | YLEZH20 | YLEZH25 | YLEZH32 | YLEZH40 | YLEHZJ10 | YLEHZJ16 | YLEHZJ20 | YLEHZJ25 |
| Open/Close Stroke (mm) | 4 | 6 | 10 | 14 | 22 | 30 | 4 | 6 | 10 | 14 |
| Type | Electric Gripper 2 Clipped Type [Long Stroke] | Electric Gripper 3 Clipped Type | |||||||
| Model | YLEHF10 | YLEHF20 | YLEHF32 | YLEHF40 | YLEHS10 | YLEHS20 | YLEHS32 | YLEHS40 | |
| Open/Close Stroke (mm) | Basics | 16 | 24 | 32 | 40 | 4 | 6 | 8 | 12 |
| Long Strokes | 32 | 48 | 64 | 80 | |||||
